Navigation icons

Quiet can show a small icon before any item in your menus. Icons appear everywhere the item does: the header bar, its dropdowns and the More menu, the phone drawer, the footer columns and the quick links on the 404 page.

There are two ways to add them, and they can be mixed.

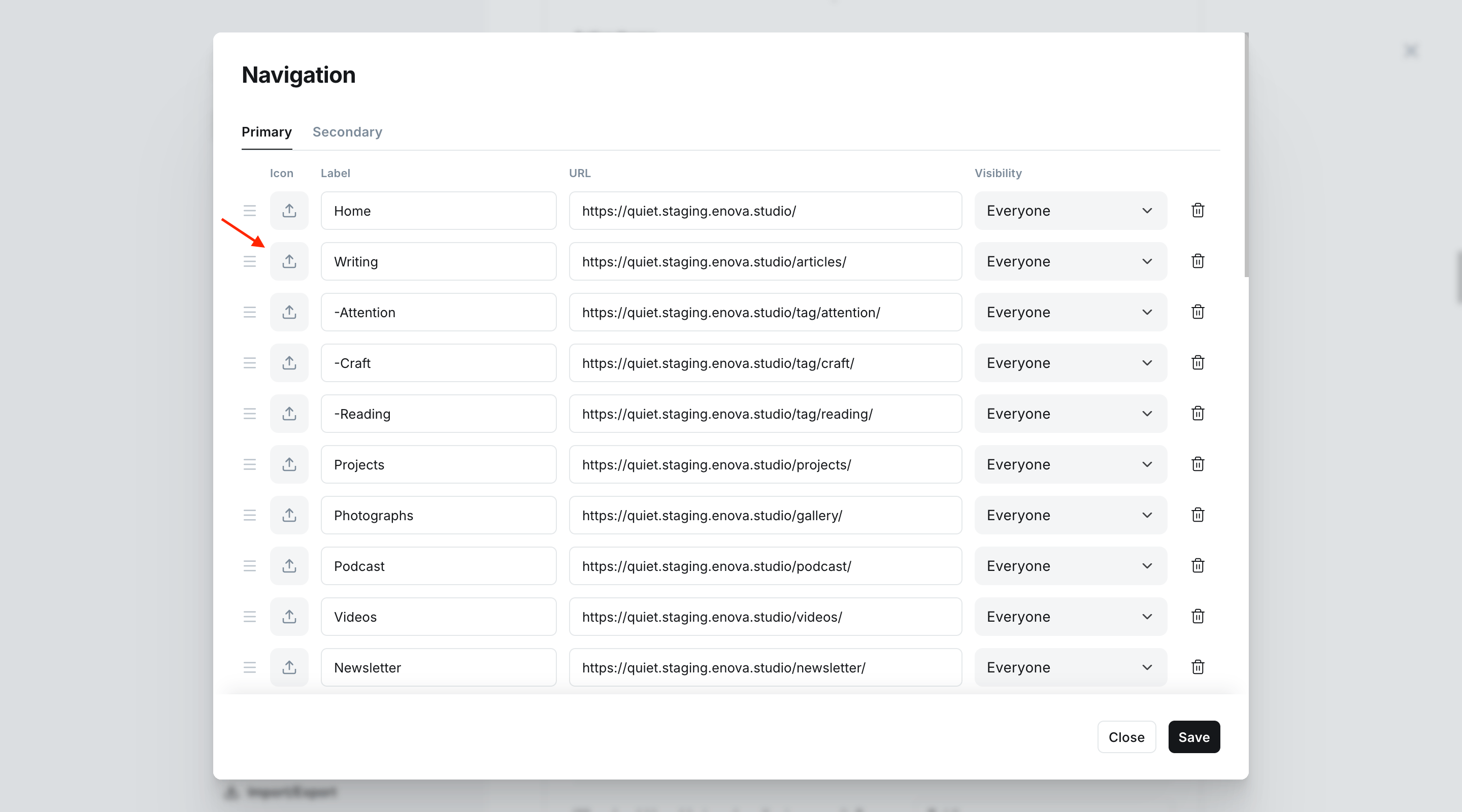

• Ghost's built-in icons. Upload a picture per item in Settings → Navigation. It is a Ghost beta, switched on under Settings → Labs, and it works with JavaScript off.
• Icons from Code injection. Name a built-in icon per item in one line, or paste your own SVG. Nothing to switch on in Labs.

If an item has both, the uploaded one wins.

Ghost's built-in icons

Choosing an icon file

• A square SVG is best: it stays crisp at any size and on any screen. A transparent PNG of at least 96 × 96 pixels also works.
• Use a single colour that reads on both a light and a dark page, such as a mid grey. Quiet does not recolour uploaded icons for dark mode. If your icons are black, the one-line snippet under Menu icons inverts them when the page is dark.
• Icons are drawn at 16 pixels beside the text. Fine detail will not survive; keep to simple shapes.

Where to get icons

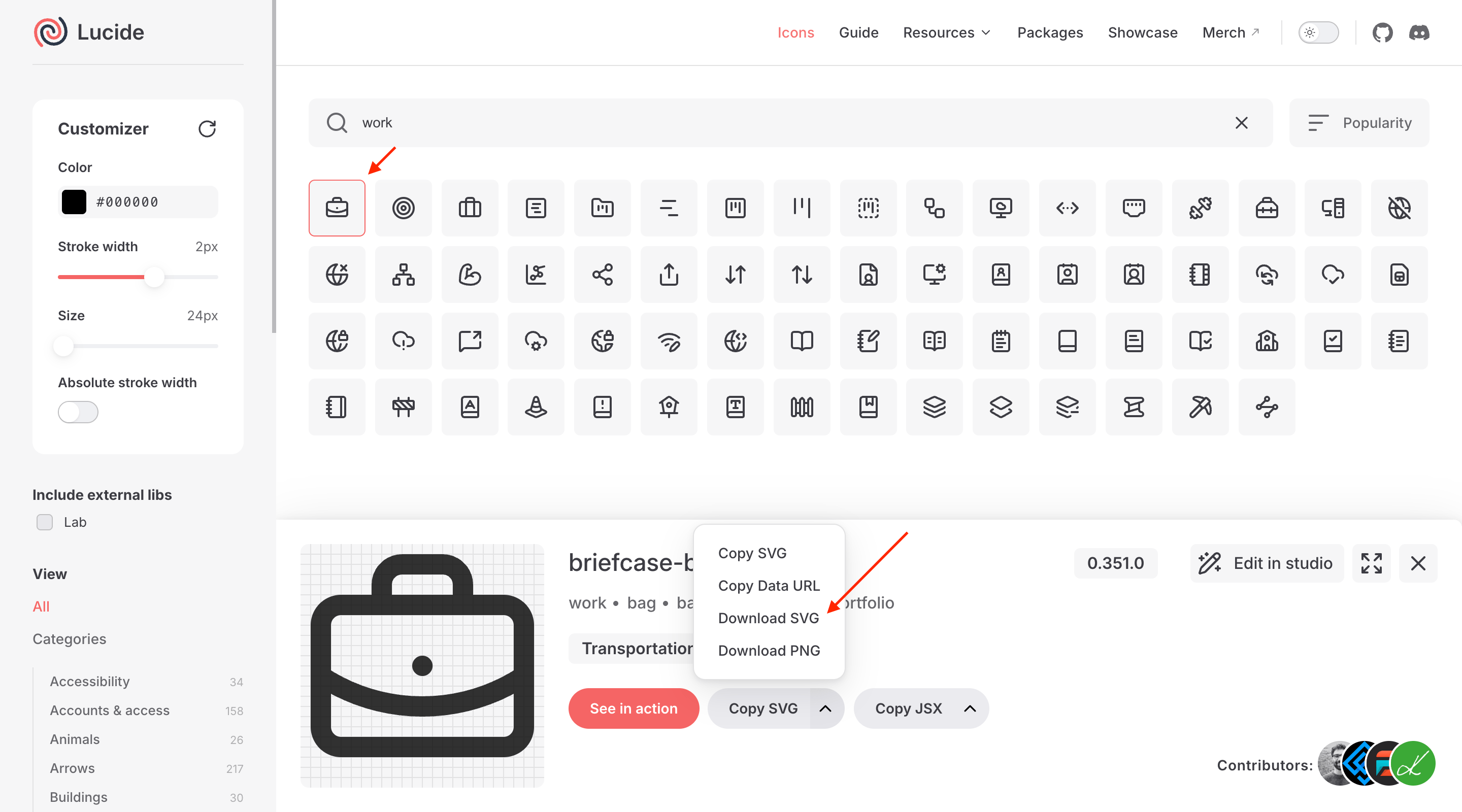

Lucide is a free set of over a thousand outline icons in the same style as Quiet's own, and every one can be downloaded as an SVG.

Tabler Icons works the same way. Both sets are free to use on any site.

Icon-only items

Leave the label empty and the icon becomes the whole link. Because there is no text, Quiet uses the file name as the name a screen reader announces and as the item's name in the header's dropdowns, so name the file what the link is: Search.svg is announced as "Search". Ghost swaps spaces and punctuation for hyphens (Sign in.svg becomes "Sign-in") and adds a number to a repeated file name (Search-1), so upload a fresh, cleanly named file rather than reusing one.

Icons from Code injection

For a site that cannot or would rather not switch on the beta. Paste into Settings → Code injection → Site header.

How matching works

Quiet matches each rule to a menu item by slugifying the label: lowercase, with spaces and punctuation turned into single hyphens, and the dropdown dash or footer hash at the start dropped.

Non-Latin labels (Arabic, Persian, Hebrew, Urdu, Chinese, Cyrillic) work as they are. For those, the anchor-block form below is easiest: write the label itself as the data-match value and Quiet slugifies both sides the same way.

Quiet never guesses. If you write no rule for an item, it gets no icon.

Option A: meta tags

One line per item, for a built-in icon by name. See the catalog for the names.

<meta name="quiet-nav-icon-home"     content="home">
<meta name="quiet-nav-icon-writing"  content="blog">
<meta name="quiet-nav-icon-about-us" content="user">
<meta name="quiet-nav-icon-contact"  content="mail">

Format: name="quiet-nav-icon-{label-slug}" and content="{icon-name-or-alias}".

Option B: anchor block

Use this when you want any of the following:

• Paste your own SVG for a custom glyph.
• Limit an icon to certain surfaces (header only, say).
• Match a label that contains a hyphen or unusual characters.

<div data-quiet-nav-icons hidden>
  <!-- Built-in icon, same effect as the meta-tag form -->
  <a data-match="home" data-icon="home"></a>

  <!-- Your own SVG: any 24×24 outline drawn in currentColor follows the text colour -->
  <a data-match="docs"
     data-svg='<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="2" stroke-linecap="round" stroke-linejoin="round"><path d="M14.5 2H6a2 2 0 0 0-2 2v16a2 2 0 0 0 2 2h12a2 2 0 0 0 2-2V7.5L14.5 2z"/></svg>'></a>

  <!-- Header only -->
  <a data-match="newsletter" data-icon="newsletters" data-placements="header"></a>
</div>

Built-in icon catalog

These names work with both forms. Aliases resolve to the same icon, so pick whichever matches your label. The catalog below is drawn from the theme itself, so it always shows exactly the icons your installed version ships.

The brand marks are the same icons the social links row uses in the footer.

Where icons show

By default a rule applies everywhere. data-placements limits it:

• header: the header bar, its dropdowns, the More menu and the 404 page's quick links.
• drawer: the phone menu.
• footer: the footer columns.

Footer column headings (a label starting with #) never show an icon from either mechanism. They are headings, not links.

Troubleshooting

With JavaScript switched off

Uploaded icons are part of the page and still show. Code injection icons are added by Quiet's script, so they do not appear; every link still works, text-only.

For developers

These names are public API. Quiet does not rename or remove them in minor releases.

Hooks

[data-part="icon"] is the icon (an <img> when uploaded, a <span> wrapping an <svg> when injected) and [data-part="label"] is the text. Both are listed with examples in the hook reference.

window.quietNavIcons

Available once the page has loaded. Register your own glyphs or re-apply rules from your own snippets.

window.quietNavIcons.register('my-glyph', '<svg …></svg>');   // add a glyph a rule can name
window.quietNavIcons.refresh();                                // re-read the rules and re-apply them
window.quietNavIcons.resolve('home');                          // the SVG string for a name, or null
window.quietNavIcons.icons;                                    // read-only merge of page, brand and registered icons
window.quietNavIcons.aliases;                                  // read-only alias table

quiet:nav-relayout

Quiet dispatches this event on document after it changes what is inside the header's menu items, and the header listens for it to re-measure the row and re-fit the More menu. Dispatch it yourself if your own code changes the width of a menu item after the page has loaded.

Related

• Navigation, for dropdowns, the More menu and footer columns.
• Social links, a sister feature using the same Code injection pattern.
• Menu icons snippets, for sizing icons and inverting them in dark mode.
